Dia 42mm small BLDC Motor

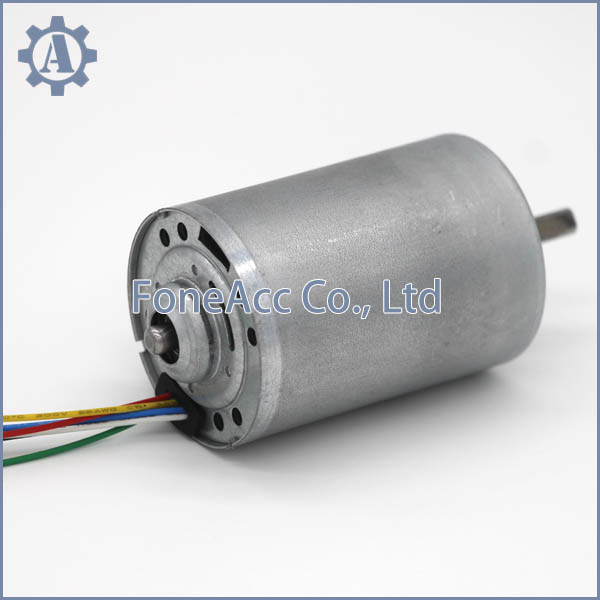

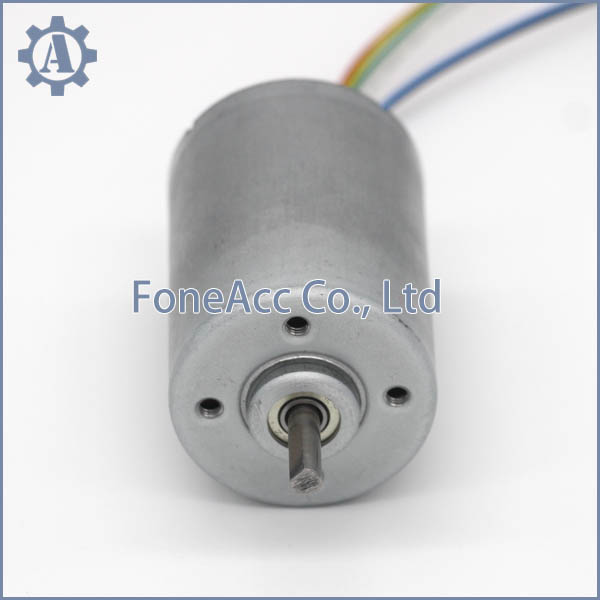

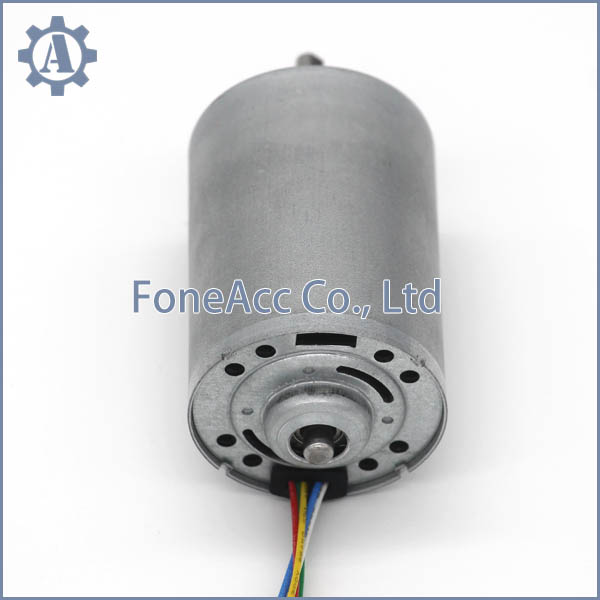

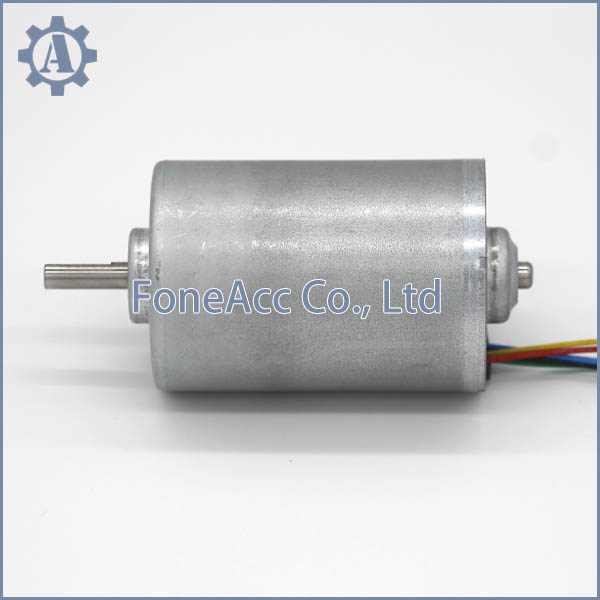

bl4260, bl4260i 42mm small bldc inner rotor brushless dc motor
Item No.: bl4260, bl4260i
bl4260i b4260m 42mm small bldc inner rotor brushless dc motor, Built-in driver, control, PWM, cw, ccw rotation, FG speed feedback signal, Low EMC, Low noise
Description

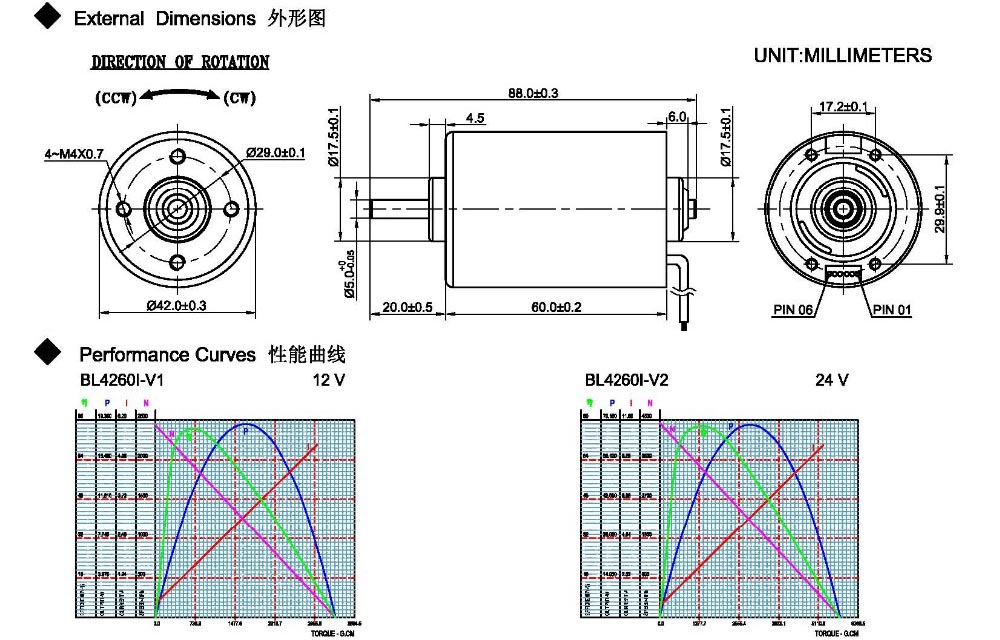

Dimension
bl4260i bl4260 42mm small bldc inner rotor brushless dc motor
Specifications:
- Size: φ42.0* 60.0mm

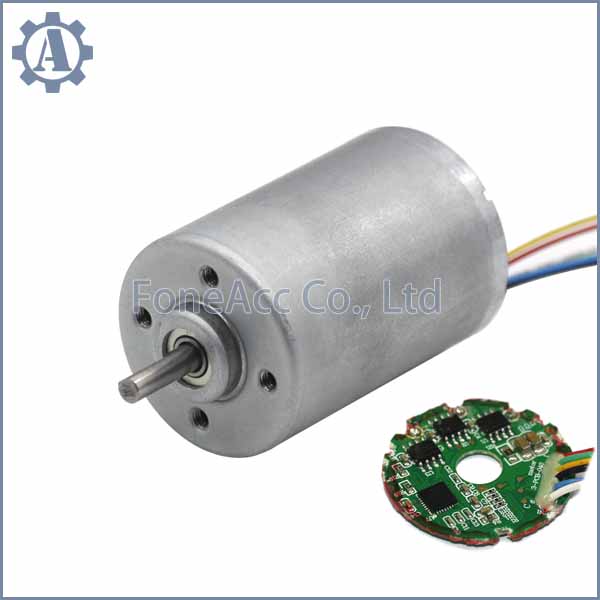

- Built-in driver
- PWM pulse wide speed range
- Clockwise/counter-clockwise rotation
- FG speed feedback signal
- Low EMC Low noise
- Long life: 20000hrs Min.
- Over-current protection
- Over-voltage protection
- Under-voltage protection
- Customization acceptable
 |
 |
 |
|

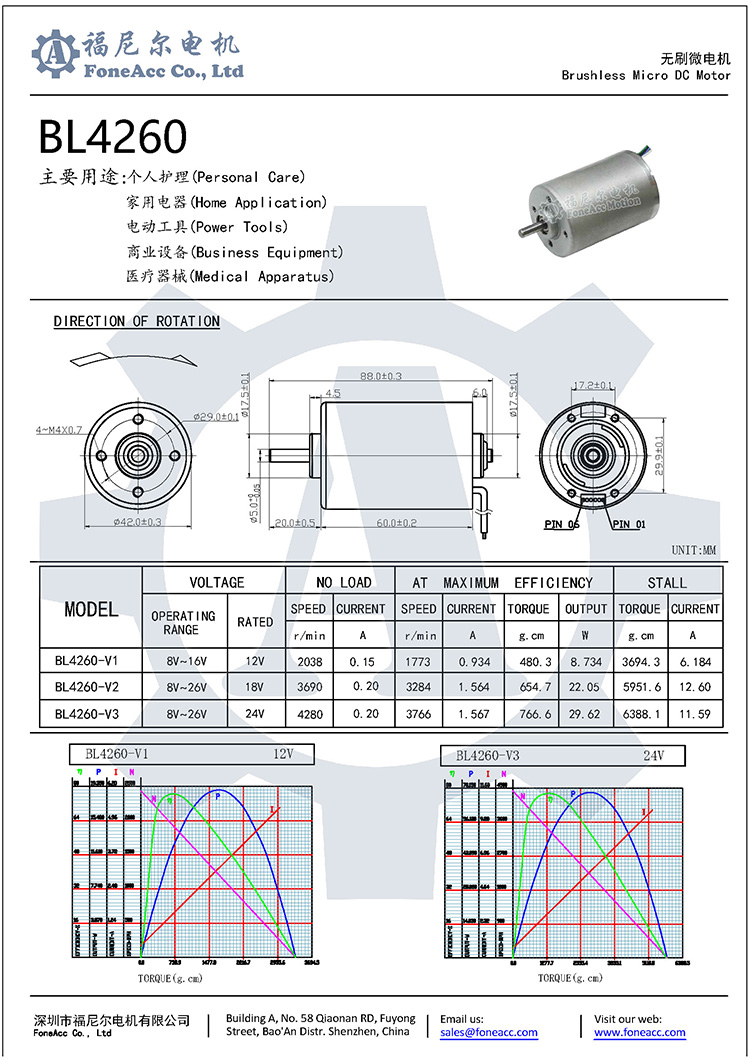

BL4260 |
Output Power: 10W~40W | Weight: 290g (Approx.) |
|
Brushless DC Motor-Typical Application Home Application: White Goods, Small Appliance, Fanner, Coffee Machine, Milk Tea Machine Medical Apparatus: Medical Pump, Surgery Tools, Medical Stirrer, centrifugal Machine Industry Equipment: Pump, Portable Screwdriver, Small Compressor Business Equipment: Printer, Copier, Projector, ATM, Vending Machine Personal Care: Hair Dryer, Electric Shaver, Massager |
||
| Model | Voltage(V) | No Load | Rated Load | Stall | ||||||
| Operating Range | Rated | Speed (rpm) | Current (A) | Torque (g.cm) | Speed (rpm) | Current (A) | Output P. (W) | Torque (g.cm) | Current (A) | |
| BL4260-S01 | 8~26 | 12 | 4590 | 0.28 | 459.18 | 3500 | 1.88 | 16.54 | 1940.801 | 3 |
| BL4260-S02 | 8~26 | 24 | 4260 | 0.26 | 969.9922 | 3270 | 1.85 | 32.58 | 4175.477 | 3 |
| BL4260-S03 | 8~26 | 24 | 4046 | 0.24 | 612.6482 | 3342 | 1.21 | 21.01 | 3516.298 | 2.5 |
| Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 3000-50000hrs |
|
|
| BL4260i Data |
 |
