Dia 42mm small BLDC Motor
bl4235, bl4235i b4235m 42mm small bldc inner rotor brushless dc motor
Item No.: bl4235, bl4235i
bl4235i b4235m 42mm small bldc inner rotor brushless dc motor, Built-in driver, control, PWM, cw, ccw rotation, FG speed feedback signal, Low EMC, Low noise
Description

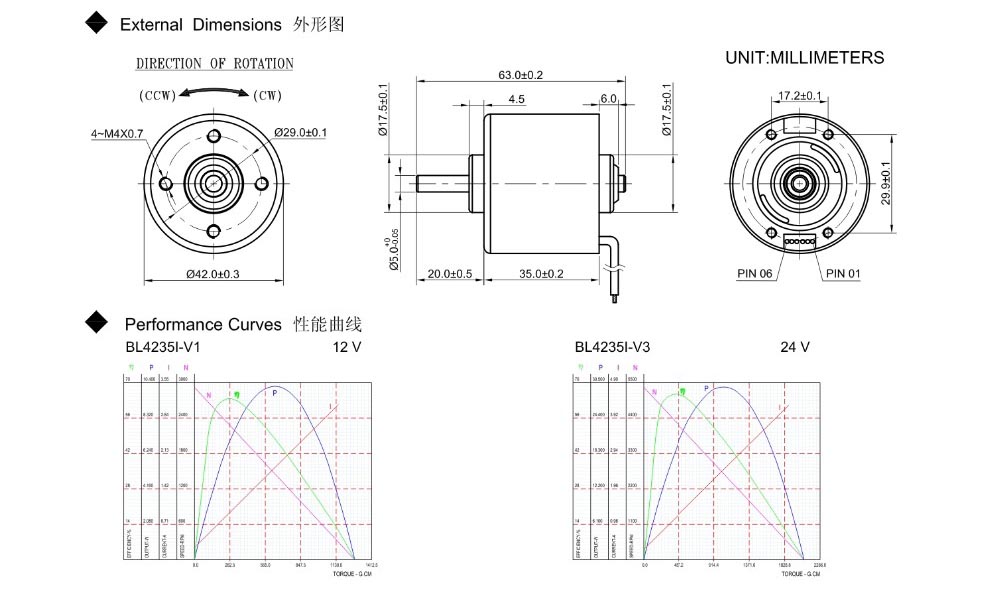

Dimension
Bl4235i bl4235 b4235m 42mm small bldc inner rotor brushless dc motor
Specifications:
- Size: φ42.0* 35.0mm

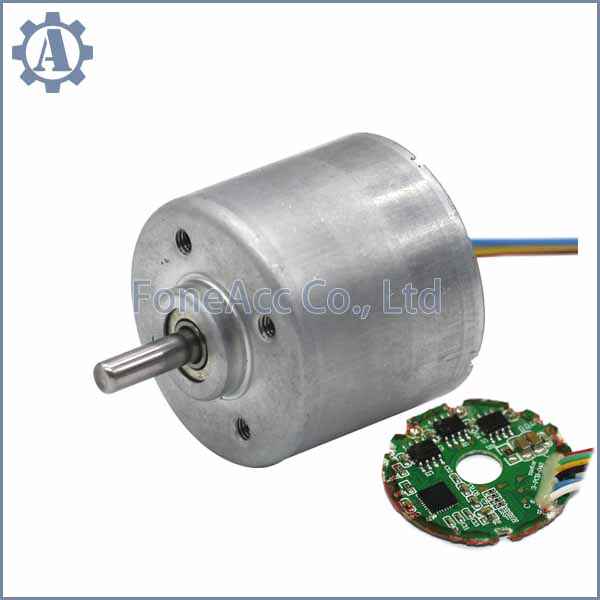

- Built-in driver
- PWM pulse wide speed range
- Clockwise/counter-clockwise rotation
- FG speed feedback signal
- Low EMC Low noise
- Long life: 20000hrs Min.
- Over-current protection
- Over-voltage protection
- Under-voltage protection
- Customization acceptable
BL4235 |
Output Power: 5W~35W | Weight: 160g (Approx.) |
Brushless DC Motor-Typical Application Home Application: White Goods, Small Appliance, Fanner, Coffee Machine, Milk Tea Machine Medical Apparatus: Medical Pump, Surgery Tools, Medical Stirrer, centrifugal Machine Industry Equipment: Pump, Portable Screwdriver, Small Compressor Business Equipment: Printer, Copier, Projector, ATM, Vending Machine Personal Care: Hair Dryer, Electric Shaver, Massager |
Model | Voltage(V) | No Load | Rated Load | Stall | ||||||
Operating Range | Rated | Speed (rpm) | Current (A) | Torque (g.cm) | Speed (rpm) | Current (A) | Output P. (W) | Torque (g.cm) | Current (A) | |
BL4235-S01 | 8~26 | 12 | 2860 | 0.21 | 410.2008 | 2050 | 1.16 | 8.62 | 1438.764 | 2.5 |
BL4235-S02 | 8~26 | 24 | 6370 | 0.3 | 357.14 | 5100 | 1.17 | 18.72 | 1793.863 | 2.5 |
BL4235-S03 | 8~26 | 24 | 9400 | 0.53 | 184.1822 | 8530 | 1.16 | 16.12 | 1988.76 | 2.5 |
BL4235-S04 | 8~26 | 24 | 5539 | 0.25 | 561.5261 | 4393 | 1.41 | 25.31 | 2696.917 | 2.5 |
BL4235-S05 | 8~26 | 24 | 8455 | 0.33 | 408.16 | 7580 | 1.64 | 31.75 | 3946.907 | 2.5 |
Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 3000-50000hrs |
|

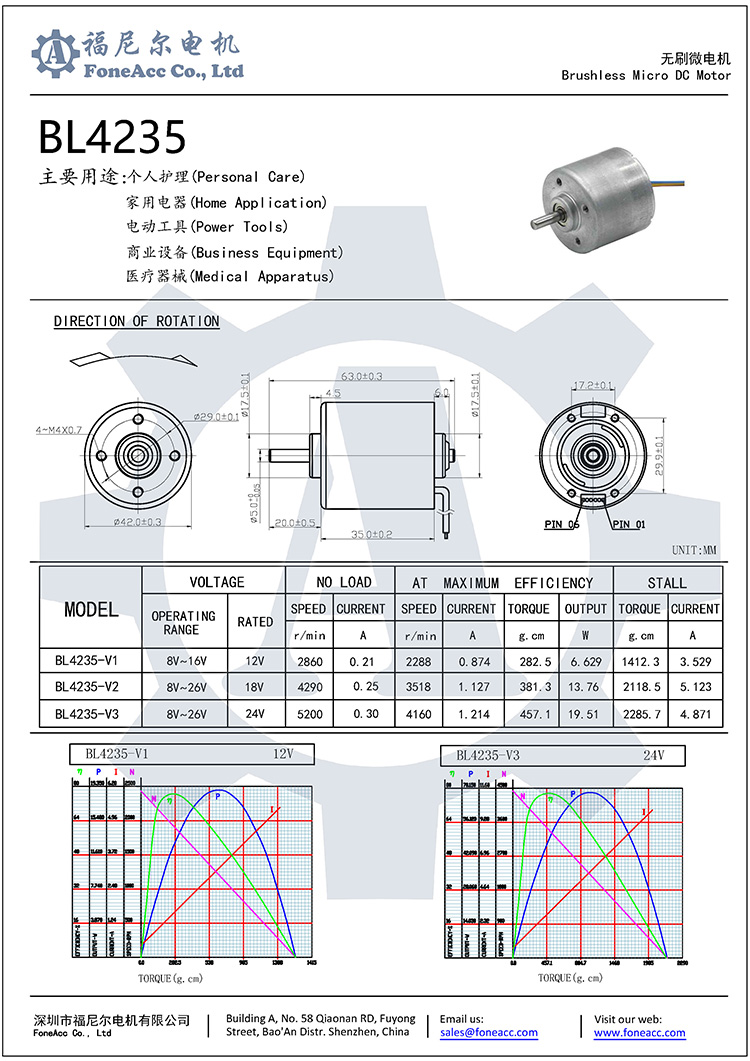

BL4235i Data: |
