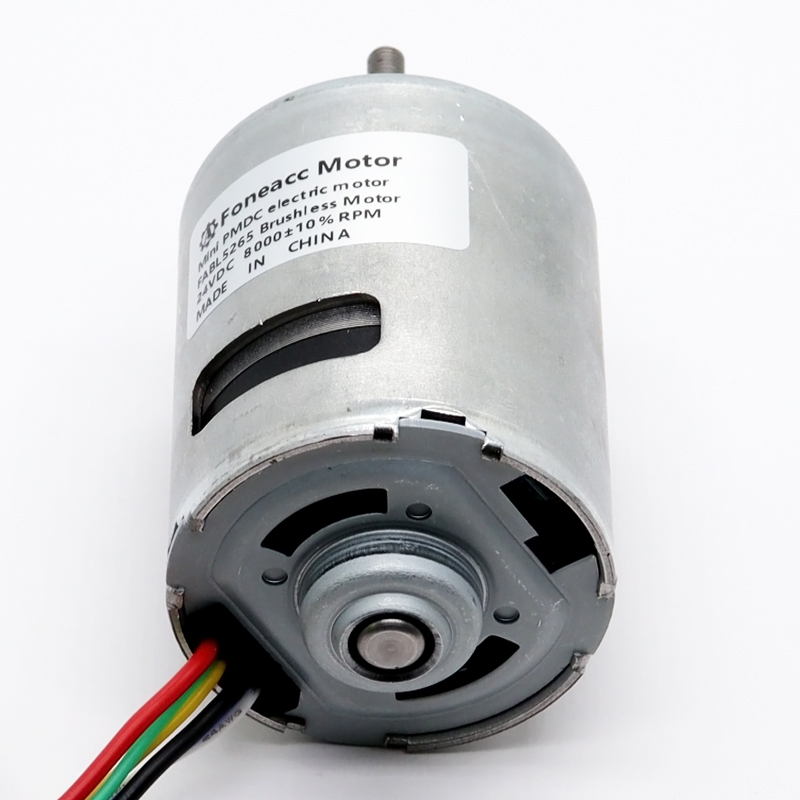

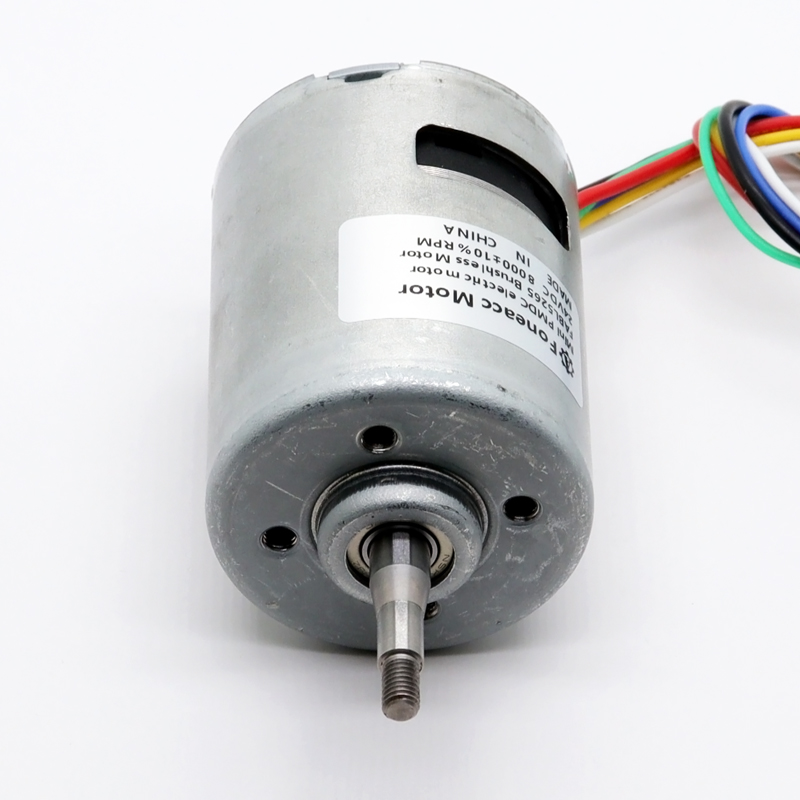

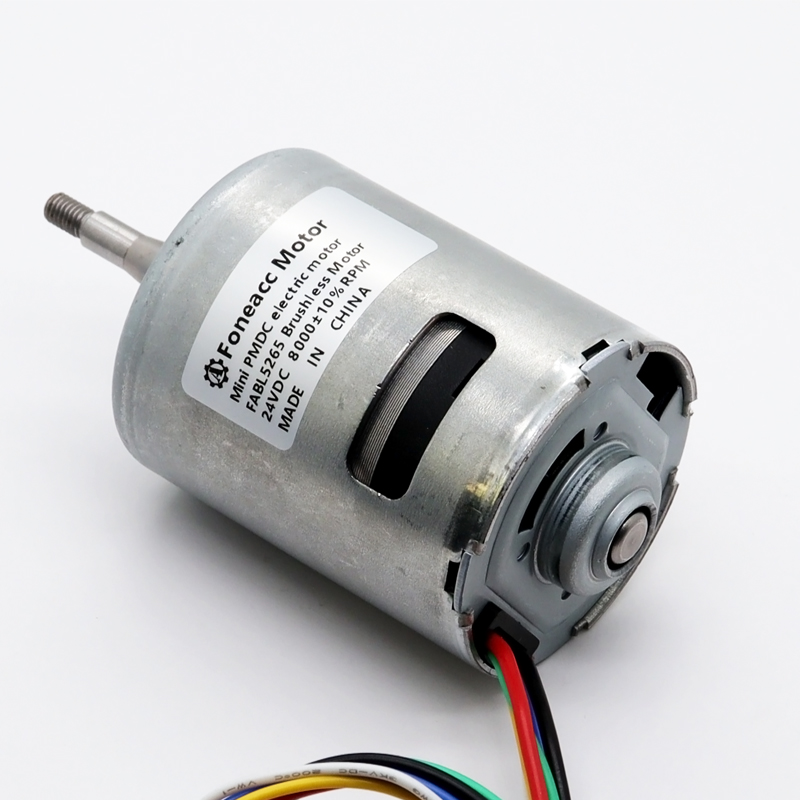

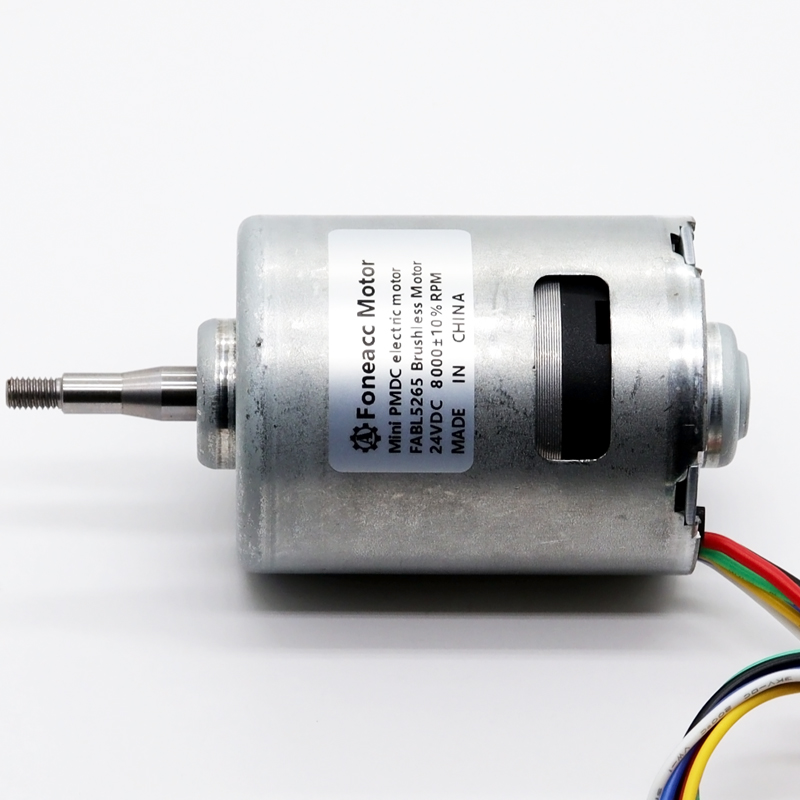

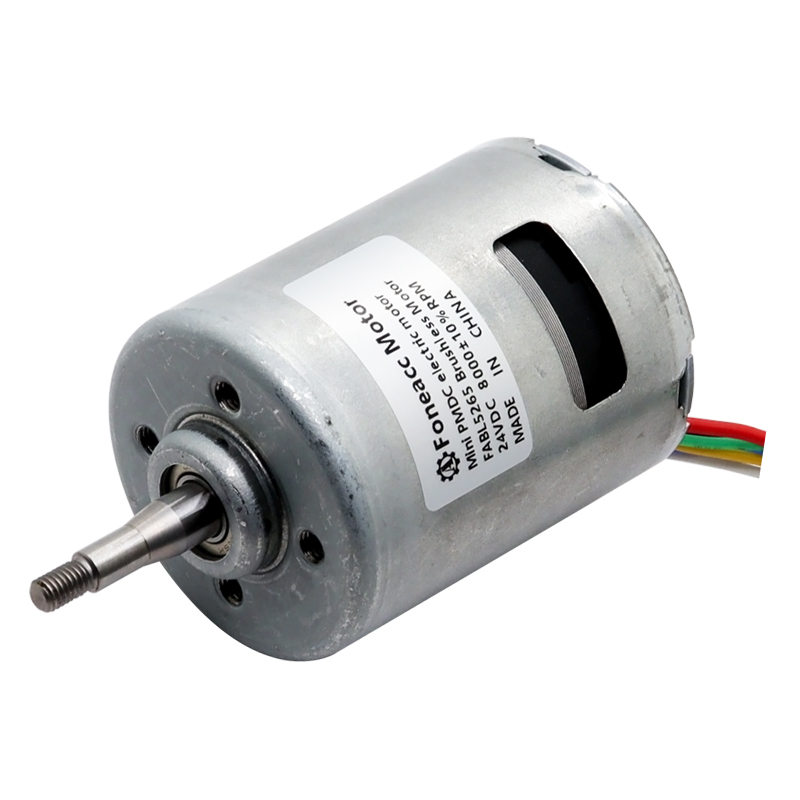

Dia 52mm small BLDC Motor
built-in driver hall sensor controller BLDC brushless dc motor BL5265 52mm outer diameter
Item No.: BL5265
built-in driver hall sensor controller BLDC brushless dc motor BL5265 52mm outer diameter
Key specs:
Inner rotor BLDC motor 3 phase with integrated electronics
Size: φ52.0* 65.0mm
Built-in driver (integrated drive built-in driver controller with hall
Key specs:
Inner rotor BLDC motor 3 phase with integrated electronics
Size: φ52.0* 65.0mm
Built-in driver (integrated drive built-in driver controller with hall
Description
built-in driver hall sensor controller BLDC brushless dc motor BL5265 52mm outer diameter
Key specs:
- Inner rotor BLDC motor 3 phase with integrated electronics
- Size: φ52.0* 65.0mm
- Built-in driver (integrated drive built-in driver controller with hall sensor)
- PWM pulse wide speed range
- Clockwise/counter-clockwise rotation
- FG speed feedback signal
- Low EMC Low noise
- Long life: 20000hrs Min.
- Over-current protection
- Over-voltage protection
- Under-voltage protection
- Customization acceptable
| Model | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | ||||||||
| OPERATION RANGE |
RATED | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| V | RPM | A | RPM | A | g.cm | mN.m | W | g.cm | mN.m | A | ||
| BL5265-S01 | 8-26V | 18 | 4920 | 0.54 | 3976 | 3.16 | 849.1 | 83.2 | 34.7 | 4568.1 | 447.6 | 11.73 |
| BL5265-S02 | 8-26V | 24 | 7930 | 0.71 | 6771 | 4.14 | 1195.2 | 117.13 | 83.1 | 8180.4 | 801.69 | 24.19 |
