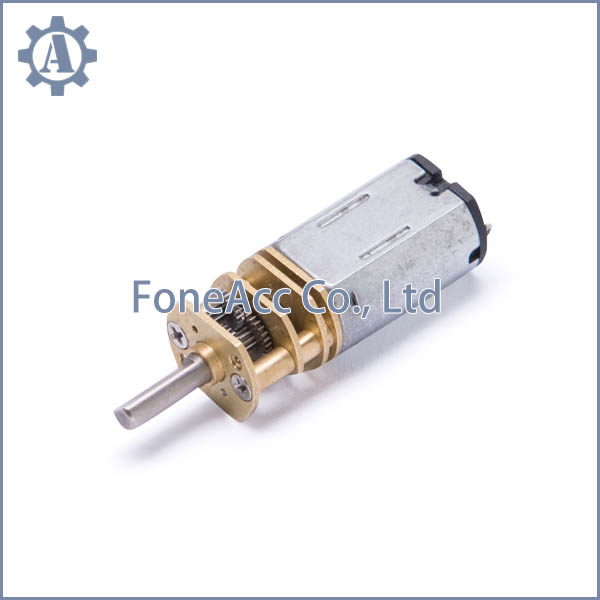

GM10-M20, GM10-M20VA dia 10mm small metal spur gear dc motor

Item No.: GM10-M20, GM10-M20VA

GM10-M20, GM10-M20VA dia 10mm small metal spur gear dc motor with factory price and good quality

INQUIRY

Description

GM10-M20 GM10-M20VA dia 10mm small metal spur gear dc motor

Characteristic:
10*8mm gearbox plus FF-M20VA small carbon brush dc motor.

* Small size dc gear motor with low speed and big torque.

* 10 mm gear motor provide 0.01Nm torque and more reliable

* Suitable to small diameter. Low noise and big torque application

* Reduction Ratio: 100:1 , 250:1

Applications:

Automatic door operators, automatic energy saving bath, electrically controlled valve, oxygen machine, optical equipment, Automat cordless power tool, lighting, etc.

Technical data and dimensions:

Motor Technical Data

Motor Model	Rated Voltage	No-load Speed	No-load Current	Rated speed	Rated torque	Rated current	Output power	Stall Torque	Stall Current
Motor Model	VDC	r/min	mA	rpm	g.cm	mA	W	g.cm	mA
FF-M20VA-09120	3.0	15700	40	13500	1.0	100	0.14	7.0	0.50

Gear Motor Technical Data

Gearbox with motor:GM10-M20-09120
Reduction ratio	100	250
Length mm	9	9
No-load speed rpm	150	60
Rated speed rpm	130	50
Rated torque Kg.cm	0.06	0.15
Max.momentary tolerance torque kg.cm	0.3	0.3

Gearbox with motor:GM10-M20-10100
Reduction ratio	100	250
Length mm	9	9
No-load speed rpm	160	65
Rated speed rpm	130	50
Rated torque Kg.cm	0.1	0.25
Max.momentary tolerance torque kg.cm	0.3	0.3

Gearbox with motor: GM10-M20-07170
Reduction ratio	10	250
Length mm	9	9
No-load speed rpm	80	30
Rated speed rpm	55	22
Rated torque kg.cm	0.06	0.15
Max.momentary tolerance torque kg.cm	0.3	0.3

Notice: Data in this typical specification sheet are for other certain customers. Voltage, Torque,
Speed, Current, Power and shaft extension feature & dimension can be changed to meet customer
specific requirement
