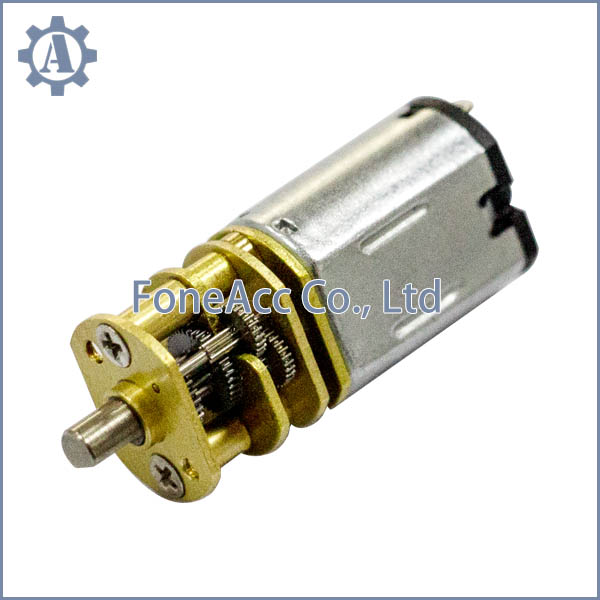

GM10-M10 GM10-M10VA dia 10mm small metal spur gear dc motor

Item No.: GM10-M10, GM10-M10VA

GM10-M10 GM10-M10VA dia 10mm small metal spur gear dc motor with factory price and good quality

INQUIRY

Description

GM10-M10 GM10-M10VA dia 10mm small metal spur gear dc motor

Key specifications as below:

rated current [mA]: 180
nominal voltage [V DC]: 4.5
rated torque [Nm]: 0.044
starting current [mA]: 350
starting torque [Nm]: 0.088
NO-load-speed [rpm]: 23000
weight [g]: about 3g
outside shaft length [mm]: 4.0
shaft end play [mm]: 0.05...0.30
screw size: M1.6x0.35
dia of shaft [mm]: Ø3x2.5

The typical application for this small metal spur gear dc motor is smart lock drive.

Specified details of this Small Gear dc motor GM10-M10:

Item	Unit	Specification
Rated voltage	VDC	4.5
Gear Ratio		1/250
Rotation		CW&CCW
Motor Position		All position in horizontal
Temperature	°C	0~30
Humidity	%	30~95
• Performance of Small DC Motor FF-M10
No-load Speed	rpm	23.000±10%
No-load Current	mA	55 (max.)
Stall Current	mA	350 (max.)
Stall Torque	g.cm	4.5
• Performance of Small Gear dc motor GM10-M10
Output Speed	rpm	90±10%
No-load Current	mA	65 (max.)
Stall Current	mA	350 (max.)
Stall Torque	g.cm	Instant allows torque 900
Rated Torque	g.cm	450
Rated Current	mA	180 (max.)
Noise	dB	45
• The Dimension of Small Gear dc motor GM10-M10
The Outside Shaft Length	mm	4
Shaft End Play	mm	0.05-0.30
Screw Size		M1.6*0.35
Dia of Shaft	mm	Ø3*2.5

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
