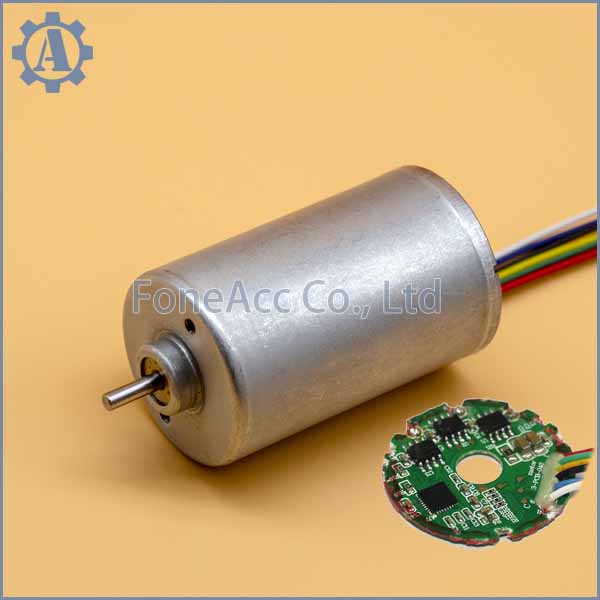

BL3657, BL3657i B3657M 36mm small bldc inner rotor brushless dc motor
BL3657, BL3657i 36mm small bldc inner rotor brushless dc motor
Specifications:

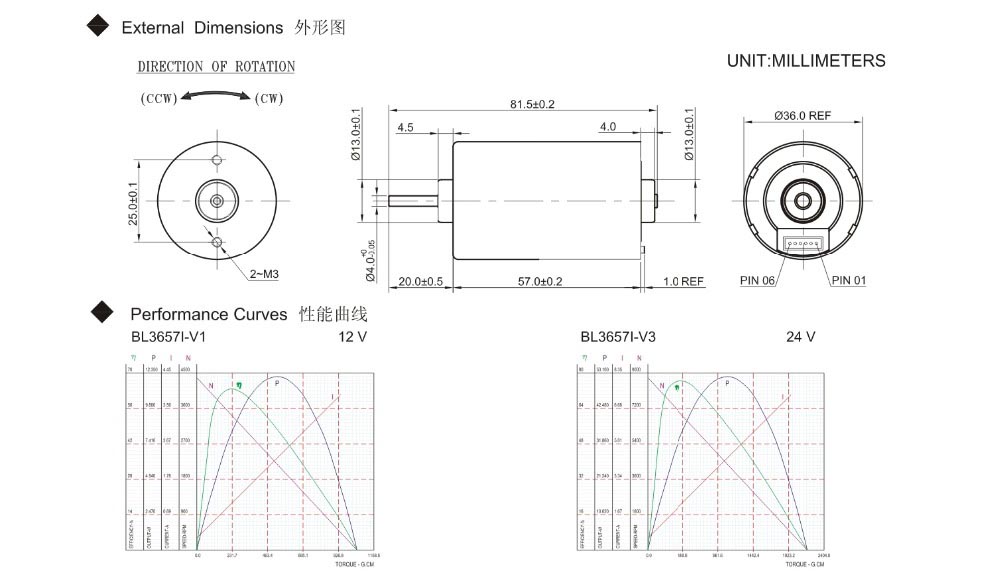

- Size: φ36.0* 57.0mm
- Built-in driver
- PWM pulse wide speed range
- Clockwise/counter-clockwise rotation
- FG speed feedback signal
- Low EMC Low noise
- Long life: 20000hrs Min.
- Over-current protection
- Over-voltage protection
- Under-voltage protection
- Customization acceptable
OD 36mm series BLDC brushless dc motor
BL3626i, BL3630i, BL3640i, BL3650i and BL3657i high performance BLDC brushless dc motor:
| Model | Voltage(V) | No Load | Rated Load | Stall | ||||||
| Operating Range | Rated | Speed (rpm) | Current (A) | Torque (g.cm) | Speed (rpm) | Current (A) | Output P. (W) | Torque (g.cm) | Current (A) | |
| BL3657i-S01 | 8~16V | 12 | 4154 | 0.19 | 196.9 | 3448 | 0.904 | 6.963 | 1158.3 | 4.405 |
| BL3657i-S02 | 8~26V | 24 | 6382 | 0.22 | 267 | 5425 | 1.174 | 14.85 | 1779.7 | 6.604 |
| BL3657i-S03 | 8~26V | 24 | 8610 | 0.28 | 384.6 | 7230 | 1.572 | 28.53 | 2403.9 | 8.342 |
|
BL3657 |
Output Power: 2W~60W | Weight: 220g (Approx.) |
|
Brushless DC Motor-Typical Application Home Application: White Goods, Small Appliance, Fanner, Coffee Machine, Milk Tea Machine Medical Apparatus: Medical Pump, Surgery Tools, Medical Stirrer, centrifugal Machine Industry Equipment: Pump, Portable Screwdriver, Small Compressor Business Equipment: Printer, Copier, Projector, ATM, Vending Machine Personal Care: Hair Dryer, Electric Shaver, Massager |
||
| Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 3000-50000hrs |
|
Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement. |

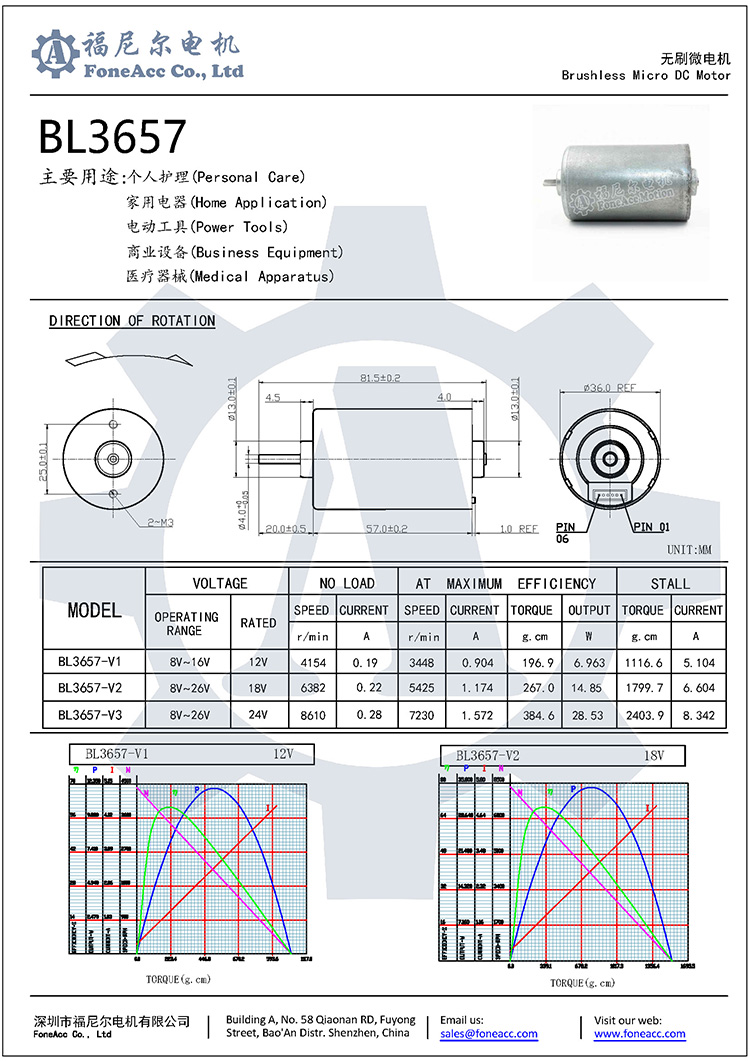

| BL3657i Data |
 |
