Dia 36mm small BLDC Motor

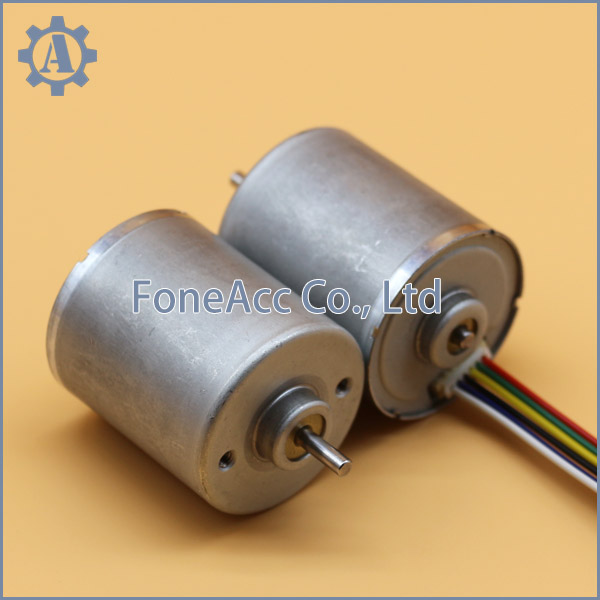

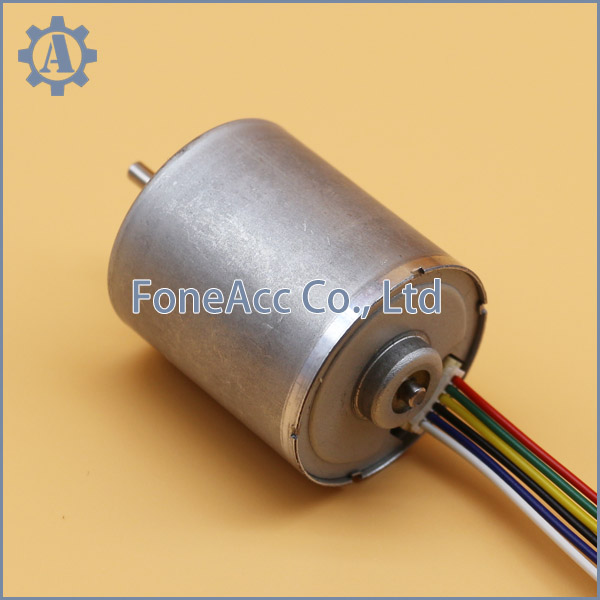

BL3640, BL3640i B3640M 36mm small bldc inner rotor brushless dc motor

Item No.: BL3640, BL3640i
bl3640i, bl3640, b3640M, 36mm brushless dc motor, inner rotor,Built-in driver, control, PWM, cw, ccw rotation, FG speed feedback signal, Low EMC, Low noise inner rotor, small brushless dc motor, diameter 36mm bldc motor, small bldc motor,
Description Dimension

BL3640, BL3640i B3640M 36mm small bldc inner rotor brushless dc motor

Specifications:

  • Size: φ36.0* 40.0mm
  • Built-in driver
  • PWM pulse wide speed range
  • Clockwise/counter-clockwise rotation
  • FG speed feedback signal
  • Low EMC Low noise
  • Long life: 20000hrs Min.
  • Over-current protection
  • Over-voltage protection
  • Under-voltage protection
  • Customization acceptable

OD 36mm series BLDC brushless dc motor

BL3626i, BL3630i, BL3640i, BL3650i and BL3657i high performance BLDC brushless dc motor:
brushless dc motor 36mm series

Model Voltage(V) No Load Rated Load Stall
Operating Range Rated Speed (rpm) Current (A) Torque (g.cm) Speed (rpm) Current (A) Output P. (W) Torque (g.cm) Current (A)
BL3640-S01 8~16V 12 4769 0.16 146.7 4006 0.818 6.028 917 4.271
BL3640-S02 8~26V 18 7068 0.19 211.93 6008 1.071 13.055 1412.4 6.066
BL3640-S03 8~26V 24 8235 0.247 288.2 6835 1.186 20.205 1695.4 5.769

BL3640

Output Power: 2W~50W Weight: 145g (Approx.)

Brushless DC Motor-Typical Application

Home Application: White Goods, Small Appliance, Fanner, Coffee Machine, Milk   Tea Machine

Medical Apparatus: Medical Pump, Surgery Tools, Medical Stirrer, centrifugal   Machine

Industry Equipment: Pump, Portable Screwdriver, Small Compressor

Business Equipment: Printer, Copier, Projector, ATM, Vending Machine

Personal Care: Hair Dryer, Electric Shaver, Massager

Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 3000-50000hrs

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

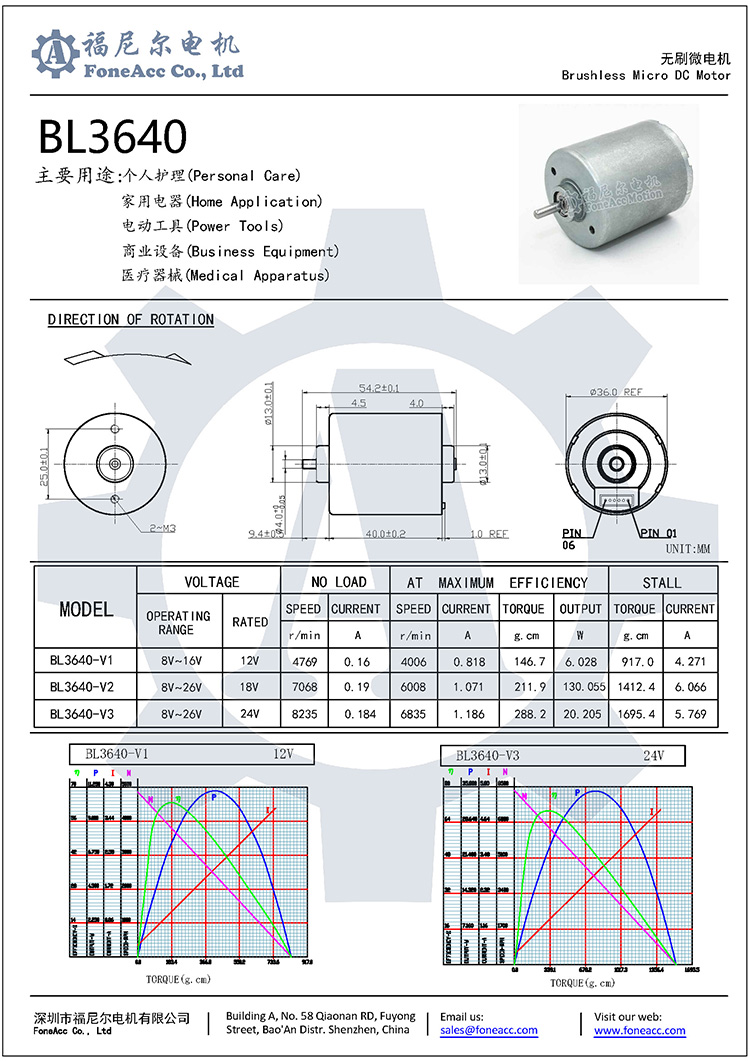

BL3640i Data

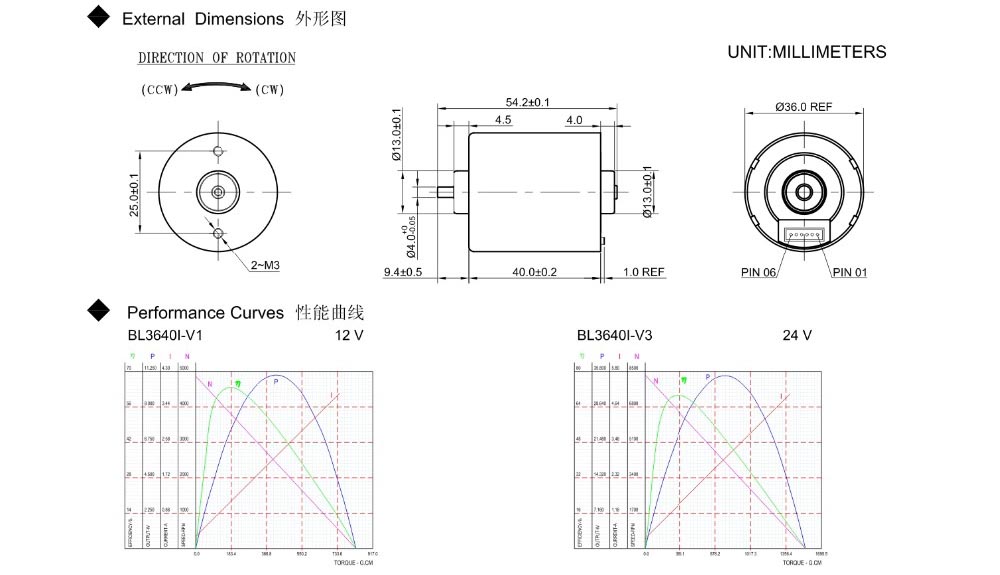

bl3640i dimensions and performance curve
