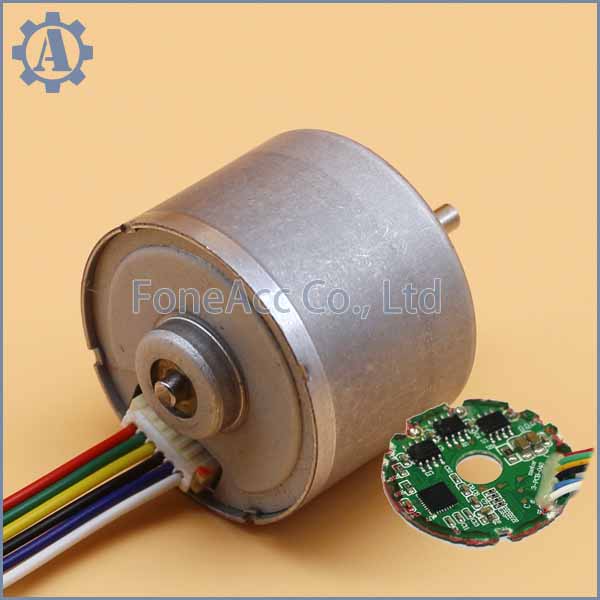

BL3626, BL3626I 36mm small bldc inner rotor brushless dc motor
BL3626, BL3626i B3626M 36mm Small BLDC Brushless DC Motor
Specifications:
- Size: φ36.0* 26.0mm
- Built-in driver
- PWM pulse wide speed range
- Clockwise/counter-clockwise rotation
- FG speed feedback signal
- Low EMC Low noise
- Long life: 20000hrs Min.
- Over-current protection
- Over-voltage protection
- Under-voltage protection
- Customization acceptable
OD 36mm series BLDC brushless dc motor
BL3626i, BL3630i, BL3640i, BL3650i and BL3657i high performance BLDC brushless dc motor:
| Model | Voltage(V) | No Load | Rated Load | Stall | ||||||
| Operating Range | Rated | Speed (rpm) | Current (A) | Torque (g.cm) | Speed (rpm) | Current (A) | Output P. (W) | Torque (g.cm) | Current (A) | |
| BL3626i-S01 | 8~16V | 12 | 6027 | 0.15 | 96.1 | 4882 | 0.638 | 4.814 | 506 | 2.721 |
| BL3626i-S02 | 8~26V | 18 | 7435 | 0.124 | 91 | 6022 | 0.504 | 5.621 | 478.9 | 2.121 |
| BL3626i-S03 | 8~26V | 24 | 8927 | 0.111 | 91.3 | 7231 | 0.456 | 6.774 | 480.8 | 1.926 |
|
BL3626,BL3630,BL3640, BL3650,BL3657 |
Output Power: 2W~90W | Weight: 95g ~ 190g (Approx.) |
|
Brushless DC Motor-Typical Application Home Application: White Goods, Small Appliance, Fanner, Coffee Machine, Milk Tea Machine Medical Apparatus: Medical Pump, Surgery Tools, Medical Stirrer, centrifugal Machine Industry Equipment: Pump, Portable Screwdriver, Small Compressor Business Equipment: Printer, Copier, Projector, ATM, Vending Machine Personal Care: Hair Dryer, Electric Shaver, Massager |
||
| Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 3000-50000hrs |
|
Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement. |

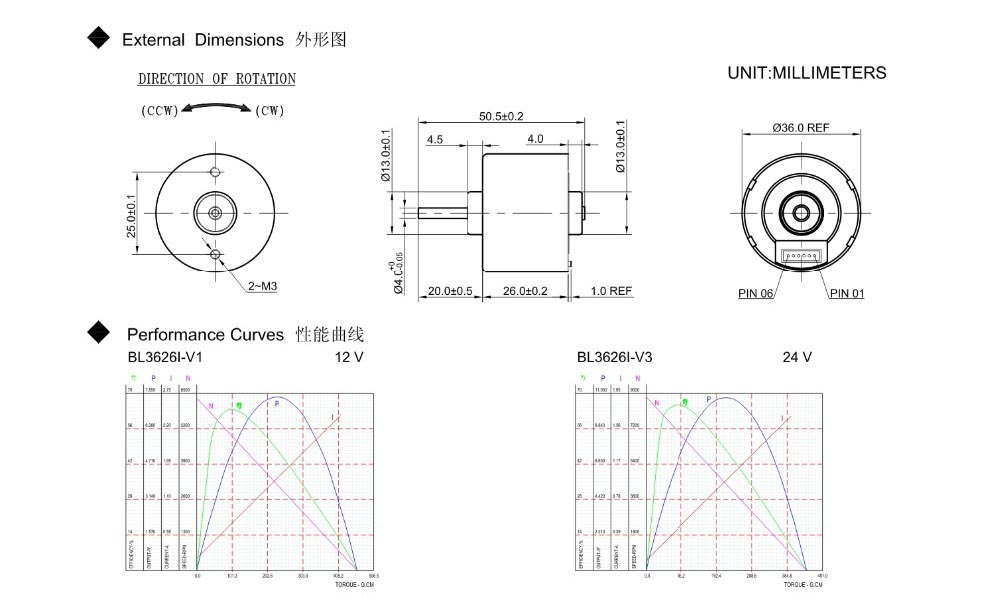

| BL3626i Data: |
 |
