Dia 28mm small BLDC Motor
BL2847, BL2847i 28mm small bldc inner rotor brushless dc motor
Item No.: BL2847, BL2847i
BL2847, BL2847i 28mm brushless dc motor, inner rotor,Built-in driver, control, PWM, cw, ccw rotation, FG speed feedback signal, Low EMC, Low noise inner rotor, small brushless dc motor, diameter 28mm bldc motor, small bldc motor,
Description
BL2847, BL2847i 28mm small bldc inner rotor brushless dc motor
Specifications:
- Size: φ28.0* 47.0mm
- Built-in driver
- PWM pulse wide speed range
- Clockwise/counter-clockwise rotation
- FG speed feedback signal
- Low EMC
- Low noise
- Long life: 20000hrs Min.
- Over-current protection
- Over-voltage protection
- Under-voltage protection
- OEM and ODM orders are welcome
- The design can be customized
OD 28mm inner rotor small bldc brushless dc motor has a family of BL2838, BL2847 and BL2867
 |
BL2847 | Output Power: 1W~30W | Weight: 90g (Approx.) | |||||||
| Brushless DC Motor-Typical Application | ||||||||||
|
Home Application: White Goods, Small Appliance, Fanner, Electric Curtain Medical Apparatus: Medical Pump, Blood Pressure Meter, Surgery Tools, Medical Stirrer, centrifugal machine Industry Equipment: Electric Valve, Portable Screwdriver, Air Pump, Water Pump, Vacuum Pump Business Equipment: Printer, Copier, Projector, Scanner, Cash Register Personal Care: Hair Dryer, Electric Shaver, Massager |
||||||||||
| Model | Voltage(V) | No Load | Rated Load | Stall | ||||||
| Operating Range | Rated | Speed (rpm) | Current (A) | Torque (g.cm) | Speed (rpm) | Current (A) | Output P. (W) | Torque (g.cm) | Current (A) | |
| BL2847i-S01 | 6~12 | 12 | 7170 | 0.17 | 122.2 | 6095 | 0.903 | 7.64 | 814.8 | 5.059 |
| BL2847i-S02 | 8~16 | 18 | 10833 | 0.20 | 147.9 | 9100 | 1.087 | 13.81 | 924.3 | 5.746 |
| BL2847i-S03 | 8~26 | 24 | 12370 | 0.21 | 173.6 | 10391 | 1.113 | 18.5 | 1085.1 | 5.852 |

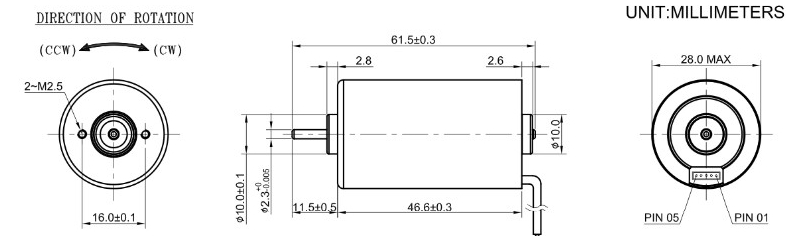

Motor drawing:

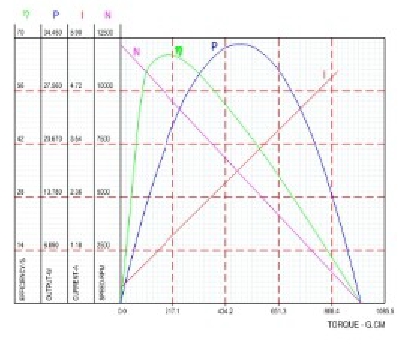

| BL2847-V1 12V | BL2847-V3 24V |
 |
 |
|
|
| Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-30000hrs |
