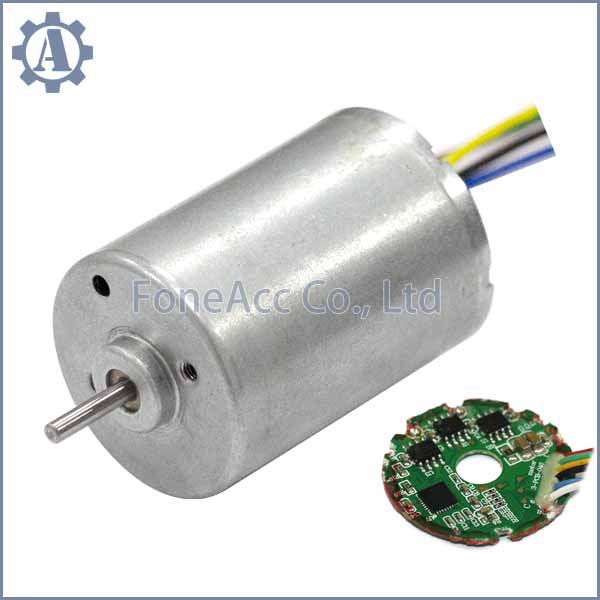

BL2838, BL2838i 28mm small bldc inner rotor brushless dc motor
BL2838, BL2838i 28mm small bldc inner rotor brushless dc motor
Specifications:
- Size: φ28.0* 38.0mm
- Built-in driver
- PWM pulse wide speed range
- Clockwise/counter-clockwise rotation
- FG speed feedback signal
- Low EMC
- Low noise
- Long life: 20000hrs Min.
- Over-current protection
- Over-voltage protection
- Under-voltage protection
- OEM and ODM orders are welcome
- The design can be customized
OD 28mm inner rotor small bldc brushless dc motor has a family of BL2838, BL2847 and BL2867
 |
BL2838 | Output Power: 1W~30W | Weight: 75g (Approx.) | |||||||
| Brushless DC Motor-Typical Application | ||||||||||
|
Home Application: White Goods, Small Appliance, Fanner, Electric Curtain Medical Apparatus: Medical Pump, Blood Pressure Meter, Surgery Tools, Medical Stirrer, centrifugal machine Industry Equipment: Electric Valve, Portable Screwdriver, Air Pump, Water Pump, Vacuum Pump Business Equipment: Printer, Copier, Projector, Scanner, Cash Register Personal Care: Hair Dryer, Electric Shaver, Massager |
||||||||||
| Model | Voltage(V) | No Load | Rated Load | Stall | ||||||
| Operating Range | Rated | Speed (rpm) | Current (A) | Torque (mNm) | Speed (rpm) | Current (A) | Output P. (W) | Torque (mNm) | Current (A) | |
| BL2838i-S01 | 6~12 | 7.4 | 4400 | 0.15 | 7 | 4100 | 0.68 | 3 | 38 | 1.6 |
| BL2838i-S02 | 8~26 | 12 | 3900 | 0.09 | 12 | 3200 | 0.58 | 4.1 | 69.4 | 1.6 |
| BL2838i-S03 | 8~26 | 24 | 7640 | 0.15 | 18 | 4700 | 0.9 | 9 | 48 | 2.5 |
| BL2838i-S04 | 8~26 | 24 | 9400 | 0.18 | 24 | 5800 | 1.38 | 14.6 | 60 | 2.5 |

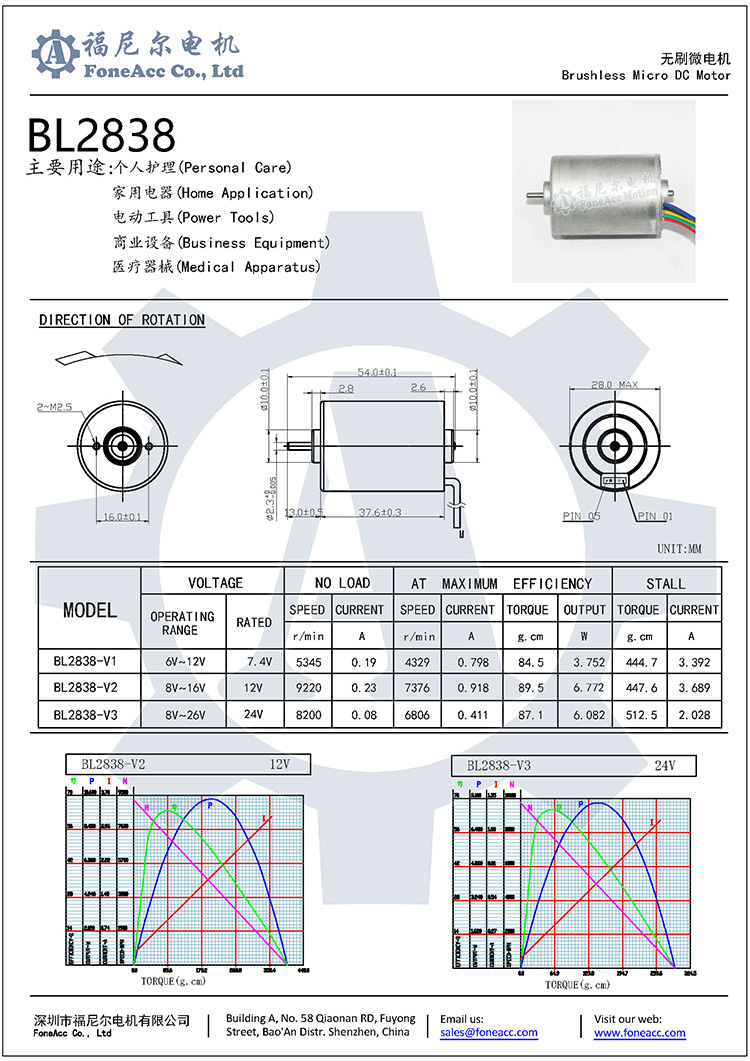

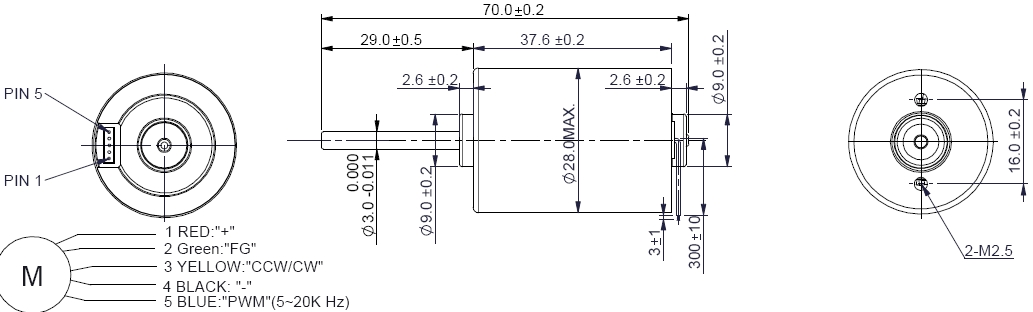

Motor drawing:

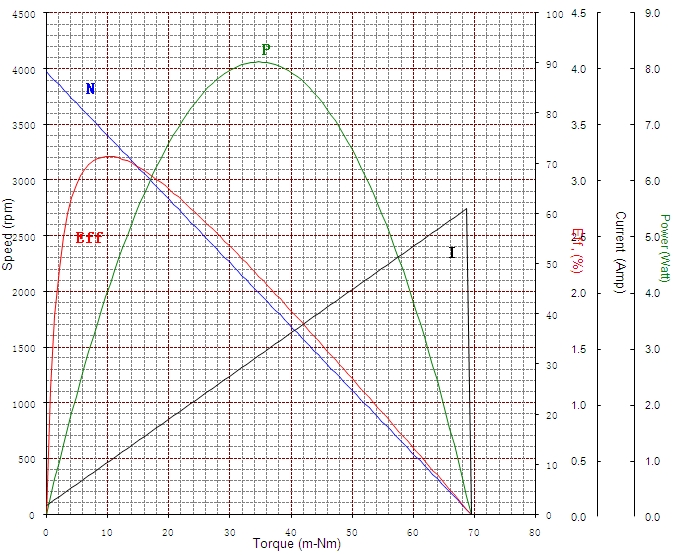

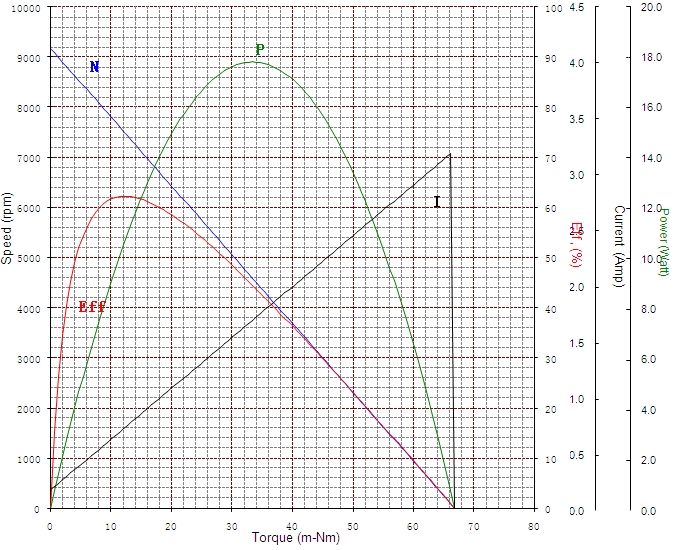

| BL2838-V2 12V | BL2838-V4 24V |
 |
 |
|
Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized. |
| Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-30000hrs |
