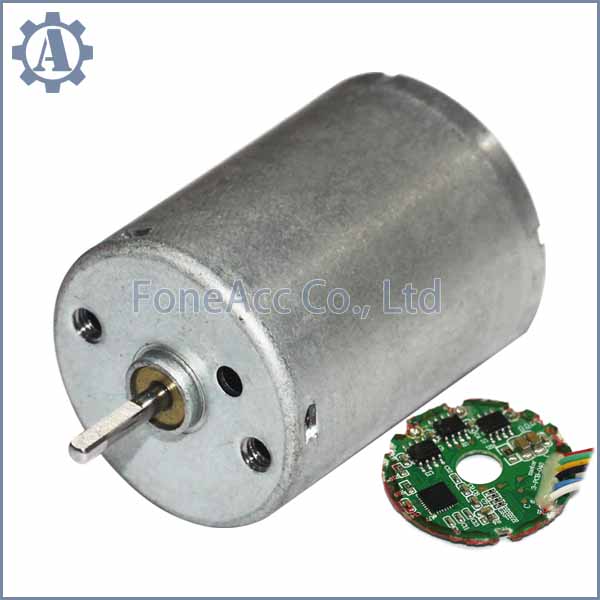

BL2430, BL2430i 24mm small bldc inner rotor brushless dc motor
BL2430, BL2430i 24mm small bldc inner rotor brushless dc motor
Specifications:- Size: φ24.0* 30.0mm
- Built-in driver
- PWM pulse wide speed range
- Clockwise/counter-clockwise rotation
- FG speed feedback signal
- Low EMC
- Low noise
- Long life: 20000hrs Min.
- Over-current protection
- Over-voltage protection
- Under-voltage protection
- OEM and ODM orders are welcome
- The design can be customized
BL2418i and BL2430i are our smallest OD brushless dc motor.
 |
BL2430 | Output Power: 1W~8W | Weight: 51g (Approx.) |
|
Brushless DC Motor-Typical Application Home Application: White Goods, Small Appliance, Fanner, Electric Curtain Medical Apparatus: Medical Pump, Blood Pressure Meter, Surgery Tools, Medical Stirrer, centrifugal Machine Industry Equipment: Electric Valve, Portable Screwdriver, Air Pump, Water Pump, Vacuum Pump Business Equipment: Printer, Copier, Projector, Scanner, Cash Register Personal Care: Hair Dryer, Electric Shaver, Massager |
|||
| Model | Voltage(V) | No Load | Rated Load | Stall | ||||||
| Operating Range | Rated | Speed (rpm) | Current (A) | Torque (mNm) | Speed (rpm) | Current (A) | Output P. (W) | Torque (mNm) | Current (A) | |
| BL2430-S01 | 5~12 | 6 | 5380 | 0.23 | 3.92 | 4720 | 0.61 | 1.94 | 13.2 | 1.5 |
| BL2430-S02 | 5~12 | 9 | 5390 | 0.11 | 9.81 | 3750 | 0.71 | 3.85 | 23.2 | 1.5 |
| BL2430-S03 | 8~26 | 12 | 8010 | 0.17 | 9.32 | 6150 | 0.74 | 6.01 | 23.5 | 1.5 |
| BL2430-S04 | 8~26 | 24 | 4570 | 0.05 | 6.87 | 3510 | 0.18 | 2.53 | 29.59 | 0.64 |
| Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 3000-15000hrs |
|
Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement. |

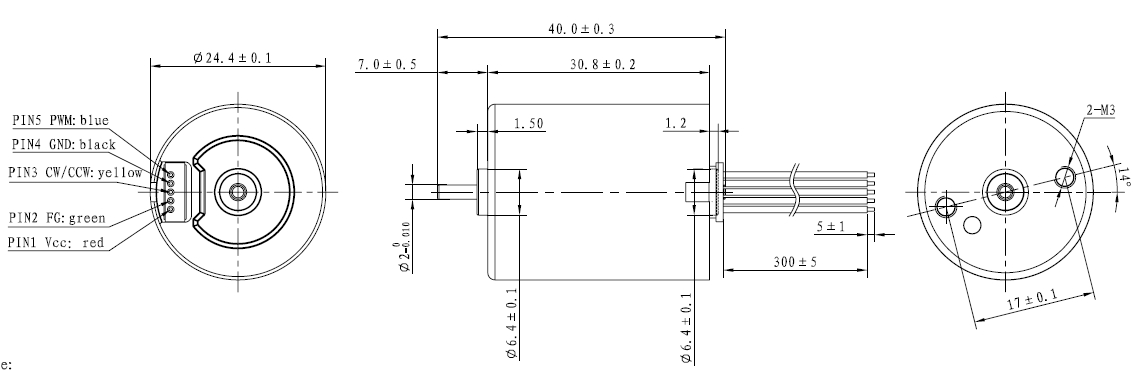

| Outline Drawing: Usable machine screw length 2.0mm max. from motor mounting surface Unit: Millimeter |
 |
Performance Curve:
| BL2430-S02 12V | BL2430-S04 24V |
 |
 |
