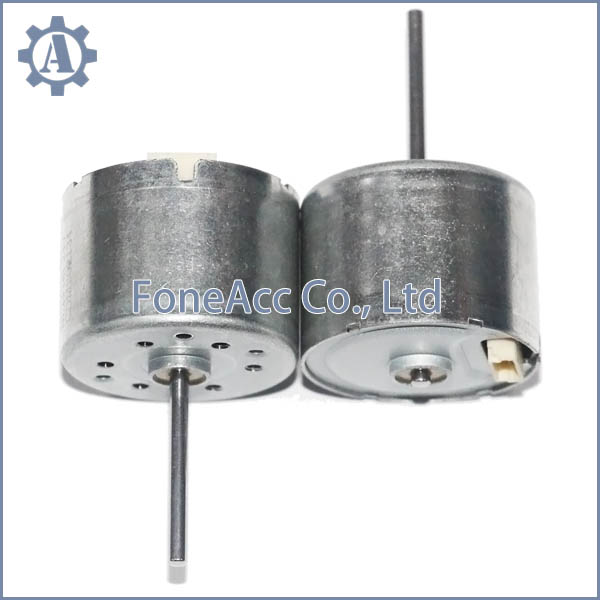

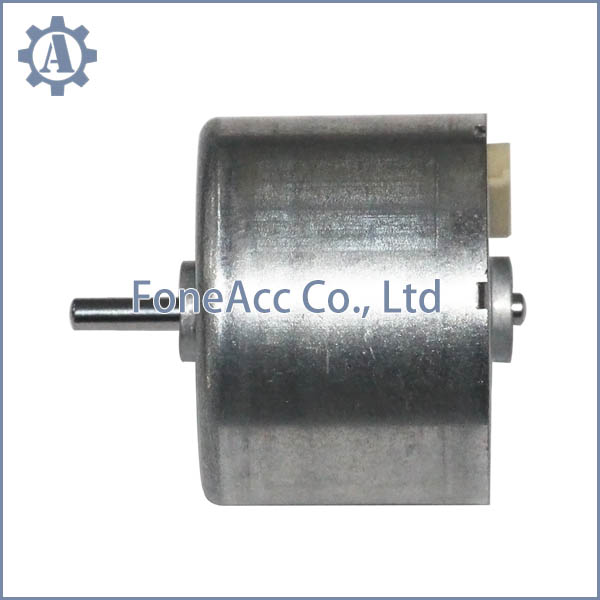

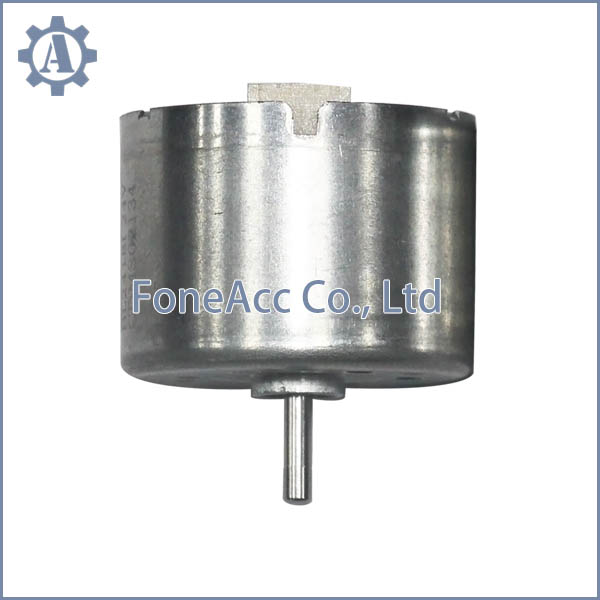

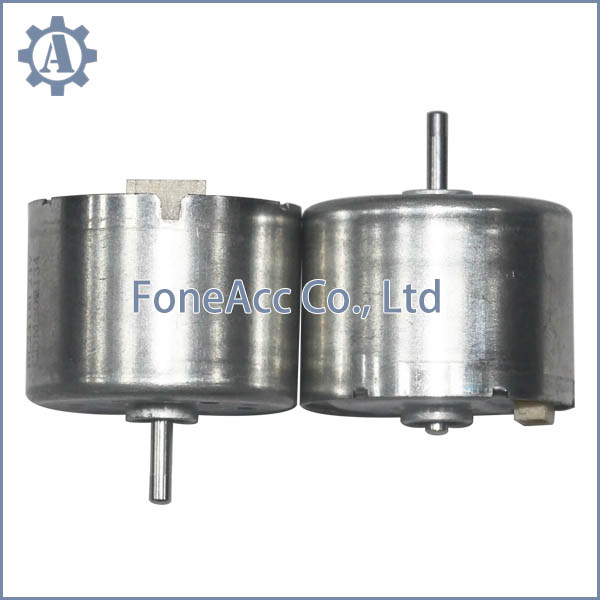

BL2418, BL2418i 24mm small bldc inner rotor brushless dc motor
BL2418, BL2418i 24mm small bldc inner rotor brushless dc motor
Specifications:
- Size: φ24.0* 18.0mm

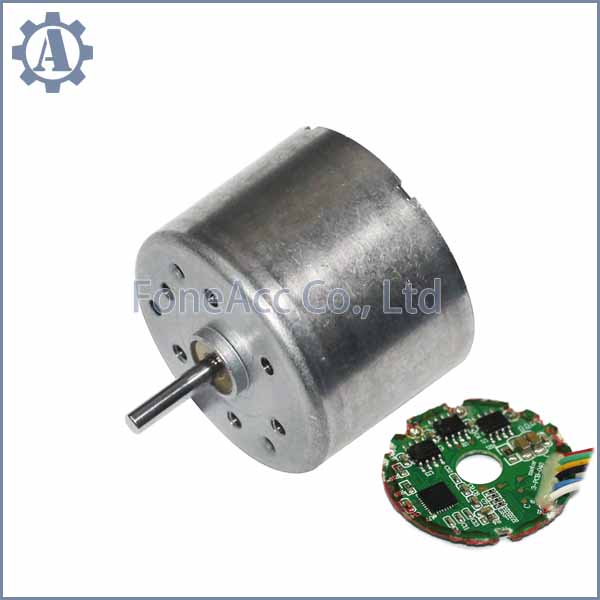

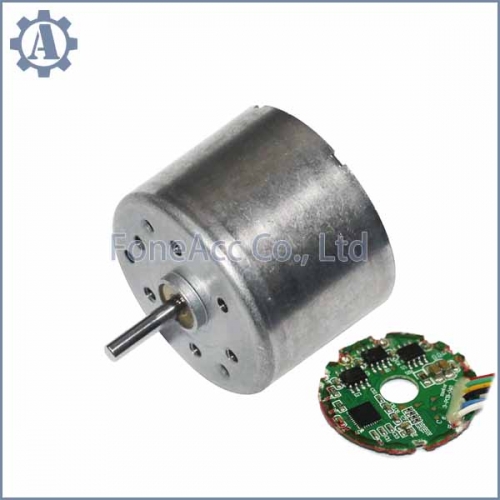

- Built-in driver
- PWM pulse wide speed range
- Clockwise/counter-clockwise rotation
- FG speed feedback signal
- Low EMC
- Low noise
- Long life: 20000hrs Min.
- Over-current protection
- Over-voltage protection
- Under-voltage protection
- OEM and ODM orders are welcome
- The design can be customized
 |
BL2418 | Output Power: 1W~6W | Weight: 30g (Approx.) |
|
Brushless DC Motor-Typical Application Home Application: White Goods, Small Appliance, Small Fanner, Electric Cooker Medical Apparatus: Medical Pump, Medical Stirrer, Centrifugal Machine Industry Apparatus: Electric Valve, Portable Screwdriver, Air/Water/Vacuum Pumps Business Equipment: Printer, Copier, Projector, Scanner, Cash Register, Card Sender Personal Care: Hair Curler, Hair Straighter, Hair Dryer, Electric Shaver, Massager, Vibrator |
|||
| Model | Voltage(V) | No Load | Rated Load | Stall | ||||||
| Operating Range | Rated | Speed (rpm) | Current (A) | Torque (mNm) | Speed (rpm) | Current (A) | Output P. (W) | Torque (mNm) | Current (A) | |
| BL2418i-S01 | 3~9 | 6 | 9260 | 0.21 | 2.45 | 7490 | 0.61 | 1.93 | 6.2 | 1.2 |
| BL2418i-S02 | 8~16 | 12 | 6520 | 0.08 | 2.45 | 4660 | 0.24 | 1.2 | 8.4 | 0.65 |
| BL2418i-S03 | 8~26 | 12 | 12420 | 0.127 | 2.94 | 9580 | 0.43 | 2.96 | 12.8 | 1.47 |
| BL2418i-S04 | 8~26 | 24 | 12770 | 0.065 | 5.89 | 9280 | 0.41 | 5.72 | 21.5 | 1.32 |
| BL2418i-S05 | 8~26 | 24 | 8660 | 0.055 | 2.94 | 6690 | 0.169 | 2.06 | 12.8 | 0.55 |
| Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 5000-50000hrs |
|
|

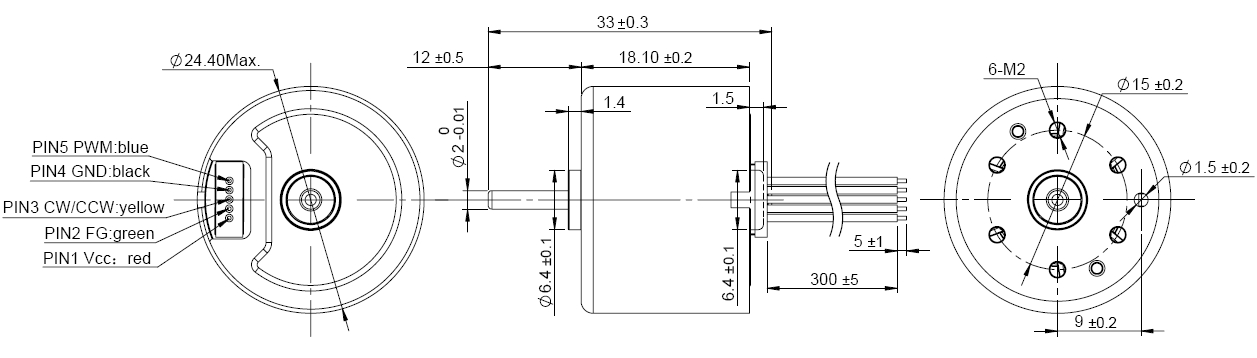

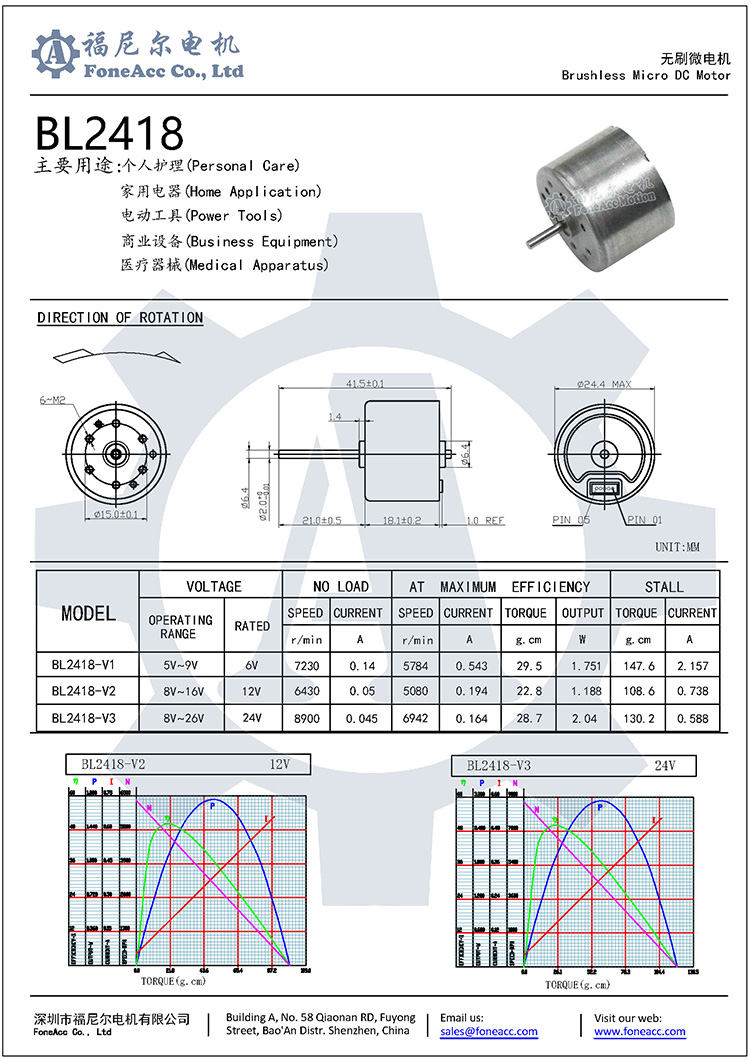

| Outline Drawing: Usable machine screw length 1.5mm max from motor mounting surface Unit: Millimeter |
 |
Performance Curve:
| BL2418-S02 12V | BL2418-S04 24V |
 |
 |
